Product Parameters galvanized steel coils

Название продукта	Galvanized Steel Coil
Wall thickness	0.12MM~5MM or customized
Длина	600MM~1500MM or customized
Стандарт	BS4449-2005,GB1449.2-2007,JIS G3112-2004, ASTM A615-A615M-04a, Korea StandarsKS D 3504, AustralasianStandard AS/NZS 4671
Класс	Q195 Q235 Q345 SGCC SGCH SGC340 SGC400 SGC440 SGC490 SGC570 SGHC SGH340 SGH400 SGH440 SGH490 SGH540 DX51D DX52D DX53D DX54D DX55D DX56D DX57D S220GD S250GD S280GD S320GD S350GD S400GD S500GD S550GD SS230 SS250 SS275
Zinc coating	30-275g/m2
Обработка поверхности	1. Galvanized 2. PVC,Black and color painting 3. Transparent oil,anti-rust oil 4. According to clients requirement
Приложение	Applies to appliances construction, machinery manufacturing, container manufacturing, shipbuilding, bridges, etc.
Пакет	Standard Export packing
Продукт	Galvanized Steel Coil

Galvanized coils are made by dipping thin steel sheets into a molten zinc bath to adhere a layer of zinc thin steel sheets on their surface. They are mainly produced by continuous galvanizing process, that is, the rolled steel sheets are continuously dipped into a molten zinc bath to make galvanized steel sheets; alloyed galvanized steel sheets. This type of steel sheet is also made by hot dip method, but after leaving the bath, it is immediately heated to about 500℃ to form an alloy film of zinc and iron. This type of galvanized coil has good coating adhesion and weldability.There are many kinds of galvanized star flowers, including large star flowers, medium star flowers, small star flowers, and no star flowers.

Galvanized steel coils are most widely used in the construction industry. They can be used as covering materials for roofs, walls, ceilings and other buildings. Due to their excellent corrosion resistance and weather resistance, they can be used for a long time in environments exposed to wind, sun, rain and snow. At the same time, galvanized steel coils can also be used to manufacture building structural materials such as box beams, bridges, stairs, handrails, etc. They are widely used not only in the construction industry, but also in transportation, manufacturing and other industries.

Тип	galvanized steel coils
Стандарт	JIS,AiSi, ASTM, GB
Длина	1~12m or as per your request
Класс	Q195,Q235,Q345,DX51D,SGCC,SGCH,DC51D,CGCC
Цинковое покрытие	20~500g/m^2
Специальное использование	Высокопрочный стальной лист
Служба обработки	Гибка, сварка, размотка, резка, штамповка
Тип "Спанч	zero spangle, normal spangle, big spanlge
Толщина	0.12~5.0mm
Продукт	galvanized steel coils
Время доставки	15-21 день

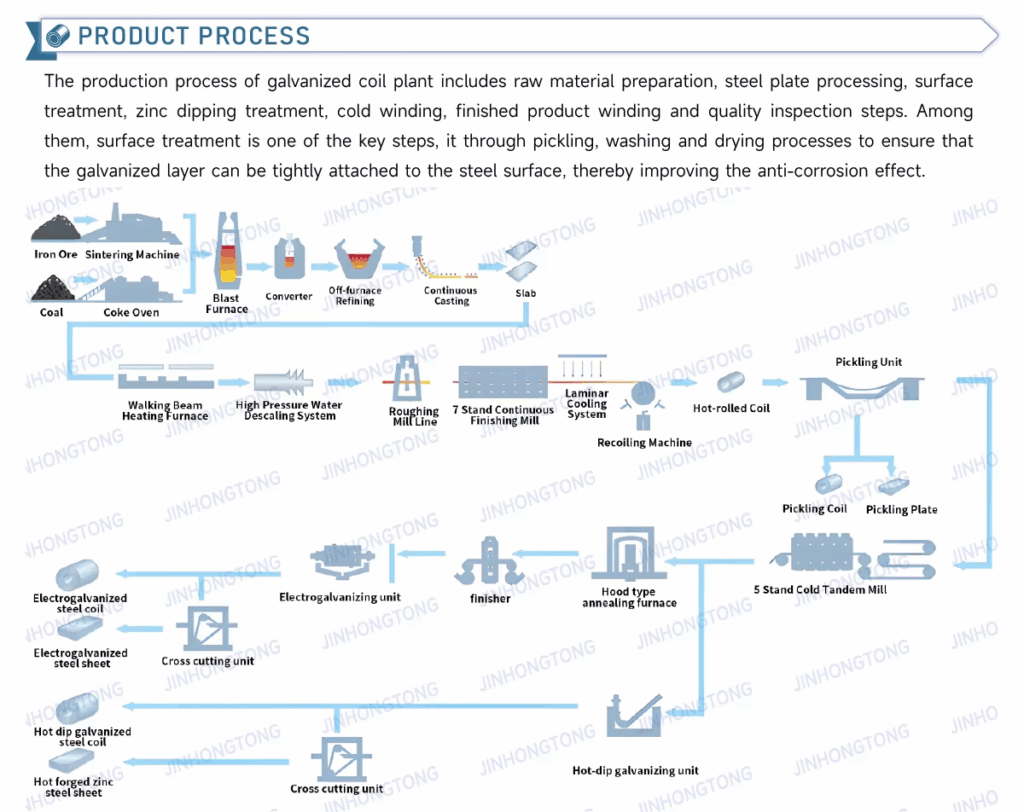

Galvanized steel coils Production process

Galvanized steel coils is mainly used in construction, home appliances, automobiles, machinery, electronics, light industry,signage industry, etc. Galvanized sheet is mainly used: a large number of galvanized sheet plate used in automobile manufacturing,cooler,
construction, ventilation and heating facilities and furniture manufacturing and other fields. Galvanized become important steel anti-corrosion method, not only because the zinc can be formed in the steel surface protective layer of dense, but also because of
the zinc has the effect of cathodic protection, when the galvanized layer damage, it can still through the cathodic corrosion protection to prevent the iron base.Hot-dip galvanizing is the reaction of molten metal with an iron substrate to produce an alloy layer, thereby combining the substrate and the plating layer. Hot-dip galvanizing is to pickle iron and steel parts first. In order to remove iron oxide on the surface of iron and steel parts, after pickling, it is cleaned in an ammonium chloride or zinc chloride aqueous solution or a
mixed solution of ammonium chloride and zinc chloride.And then sent to the hot-dip plating bath. Hot-dip galvanizing has the advantages of uniform coating, strong adhesion and long service life.

Export standard package,bundled or be required. The inner size of container is below: 20ft GP: 5.8m(length) x2.13m(width)
x2.18m(height)
40ft GP: 11.8m(length) x 2.13m(width) x 2.72m(height)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(heigh)

About Galvanized steel coils

All specifications products can be customized according to customer requirements
Название продукта	Galvanized Steel Coils
Материал	Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD , S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement
Ширина	600mm-1500mm or914mm/1000mm/1200mm/1219mm/1220mm/etc.
Толщина	0.12mm-4.0mm or 0.8mm/1.0mm/1.2mm/1.5mm/2.0mm /etc.
Стандарт	EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
Техника	Galvanized Steel Coils
Zinc coating	Z30g/m2-Z350g/m2
Поверхность	Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
Вес катушки	3 Tons -20Tons ,or as customer requirements
ID катушки	08mm/610mm
MOQ	3 Ton or Sample can available
Время доставки	Usually within 7 days,Arrange the delivery time according to the quantity
Приложение	Building , Corrugated sheet Roofing, electrical, Appliances, Automobile industry, Transport Packaging ,Machinery processing ,Interior decoration , Medical,etc.
